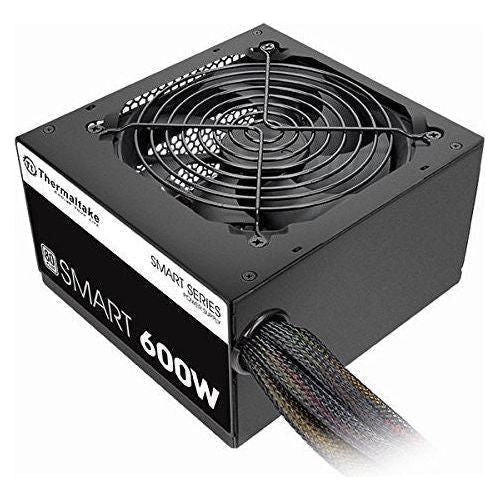

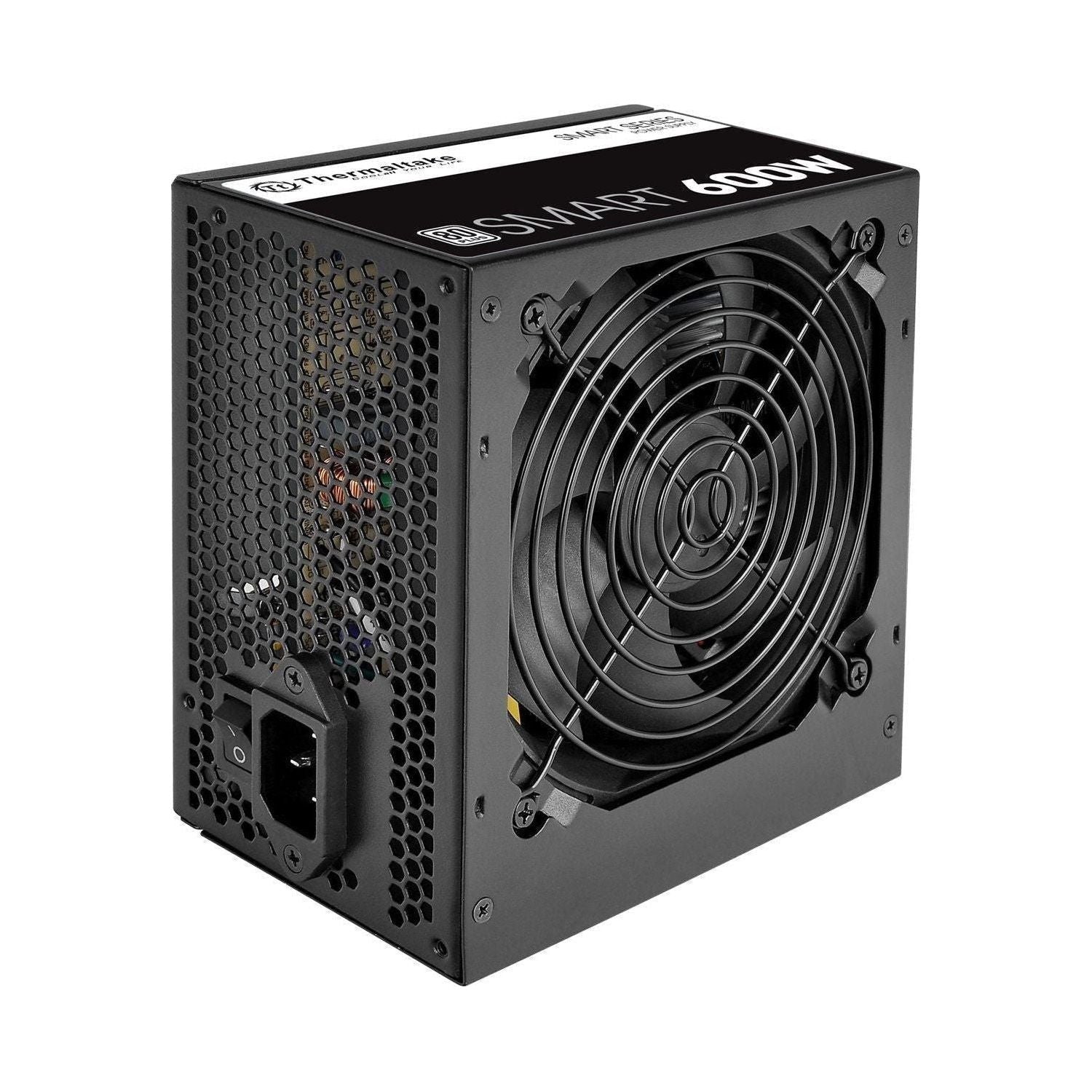

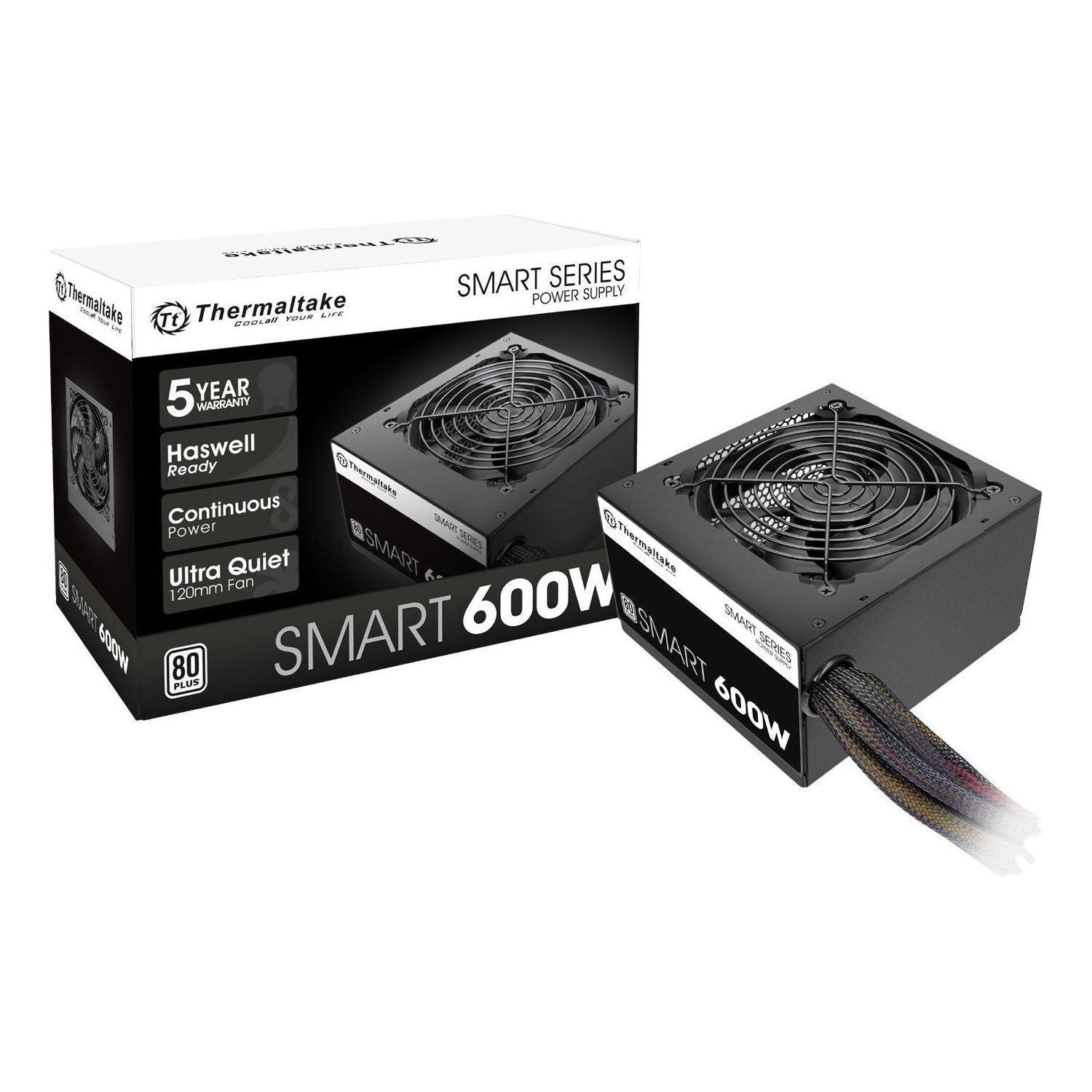

Thermaltake SMART 600W ATX 12V V2.3/EPS 12V 80 Plus Certified Active PFC Power Supply PS-SPD-0600NPCWUS-W

Brand: Thermaltake

Features:

• Delivers 600W Continuous output at plus 40℃. Compliance with Intel ATX 12V 2. 31 and EPS 12V 2. 92 standards
• 80 PLUS Certified – 80% efficiency under typical load. Power good signal is 100-500 millisecond
• Supports (2) PCI-E 6 plus 2pin Connectors. Active (PFC) Power Factor Correction, MTBF: 100, 000 hours
• Industry Grade Protections: (OPP) Over Power Protection, (OVP) Over Voltage Protection, (SCP) Short Circuit Protection
• Hold up time is 16 millisecond minimum within 60 percent load. Input frequency range 50 - 60 in Hz

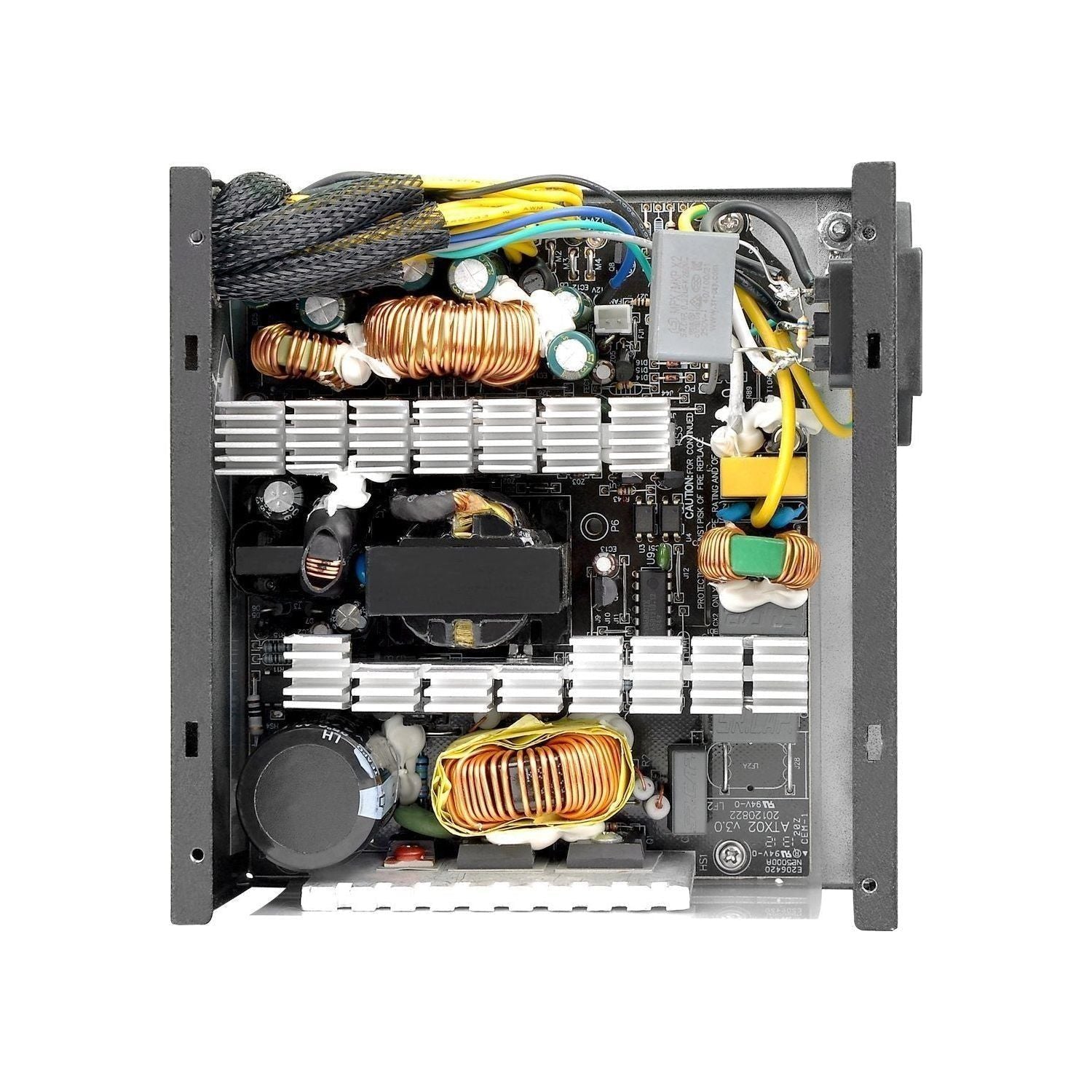

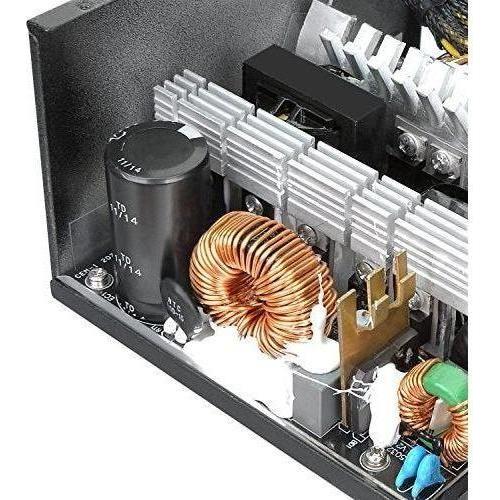

• High-Quality Components
• Equipped with a powerful plus 12V rail, superior performance under all types of system loading
• 5 Year
• Maximum Output Capacity is 600 Watts

Binding: Personal Computers

Release Date: 03-08-2018

model number: PS-SPD-0600NPCWUS-W

Part Number: PS-SPD-0600NPCWUS-W

Details: Incorporating various high-quality components, the Smart Series - models are rated from 500W to 700W - saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

P/N: PS-SPD-0600NPCW**-W
Short P/N: SPD-0600P
Model: SP-600AH2NKW
Type: Intel ATX 12V 2.3

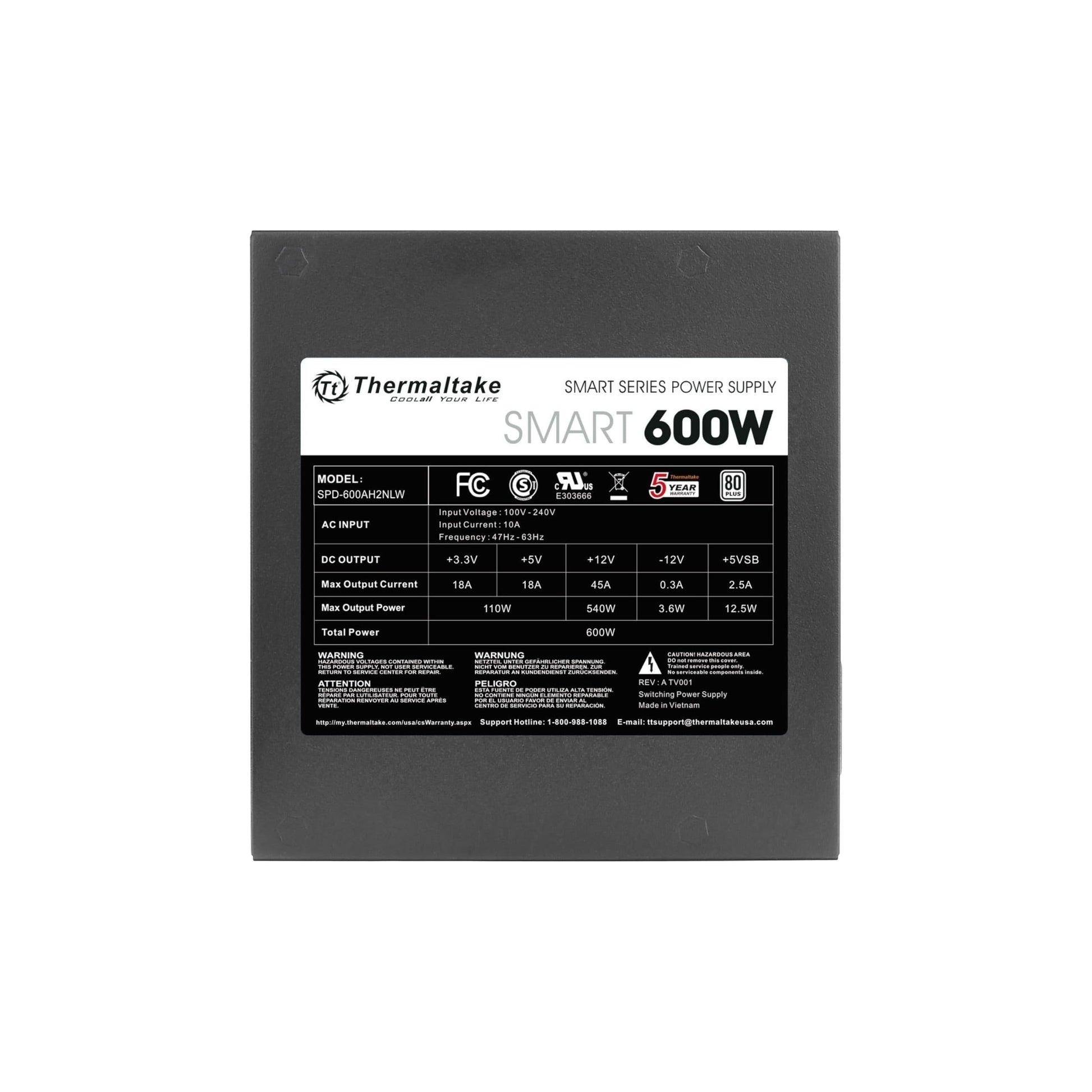

Max. Output Capacity : 600W
Color: Black
Dimension (H x W x D): 86mm x 150mm x 140mm
PFC （Power Factor Correction）: Active PFC
Power Good Signal: 100-500 msec
Hold Up Time : 16msec (minimum) within 60% load
Input current: 10A max
Input Frequency Range: 50 Hz - 60 Hz
Input Voltage: 100Vac - 240Vac
Operating Temperature: 5℃ to +40℃
Operating Humidity: 20% to 85%,non-condensing
Operating Temperature: -40 ℃ to +55 ℃
Storage Humidity: 10% to 95%, non-condensing

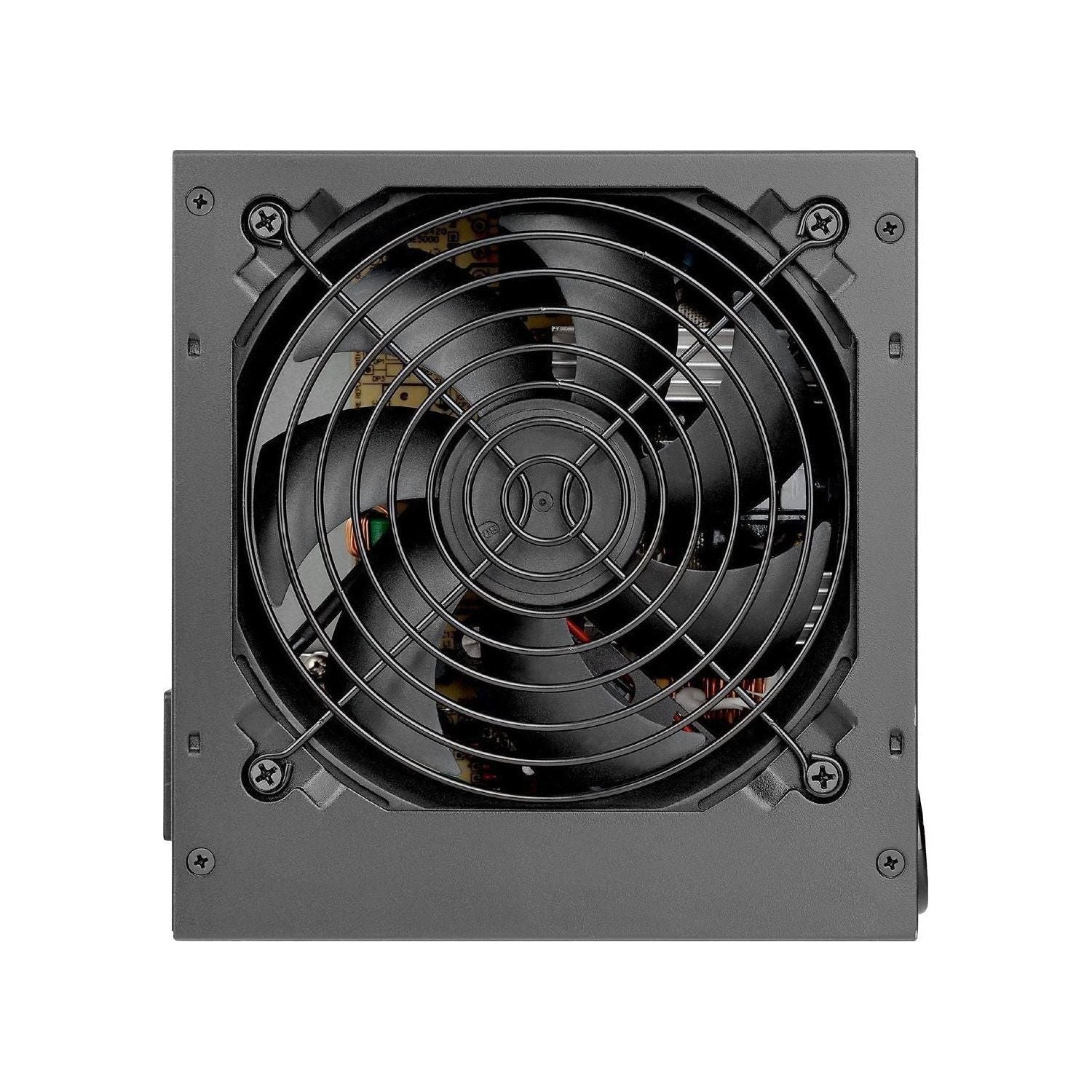

Cooling System: 120mm Fan: 1800 R.P.M. ± 10%
Efficiency: 82-86% efficiency @ 20-100% load
MTBF: 100,000 hrs minimum
Safety Approval: CE/CB/TUV/ UL/ FCC
PCI-E Connector: PCI-E 6+2pin x 2.

EAN: 0841163062241

Package Dimensions: 9.4 x 7.4 x 4.0 inches
